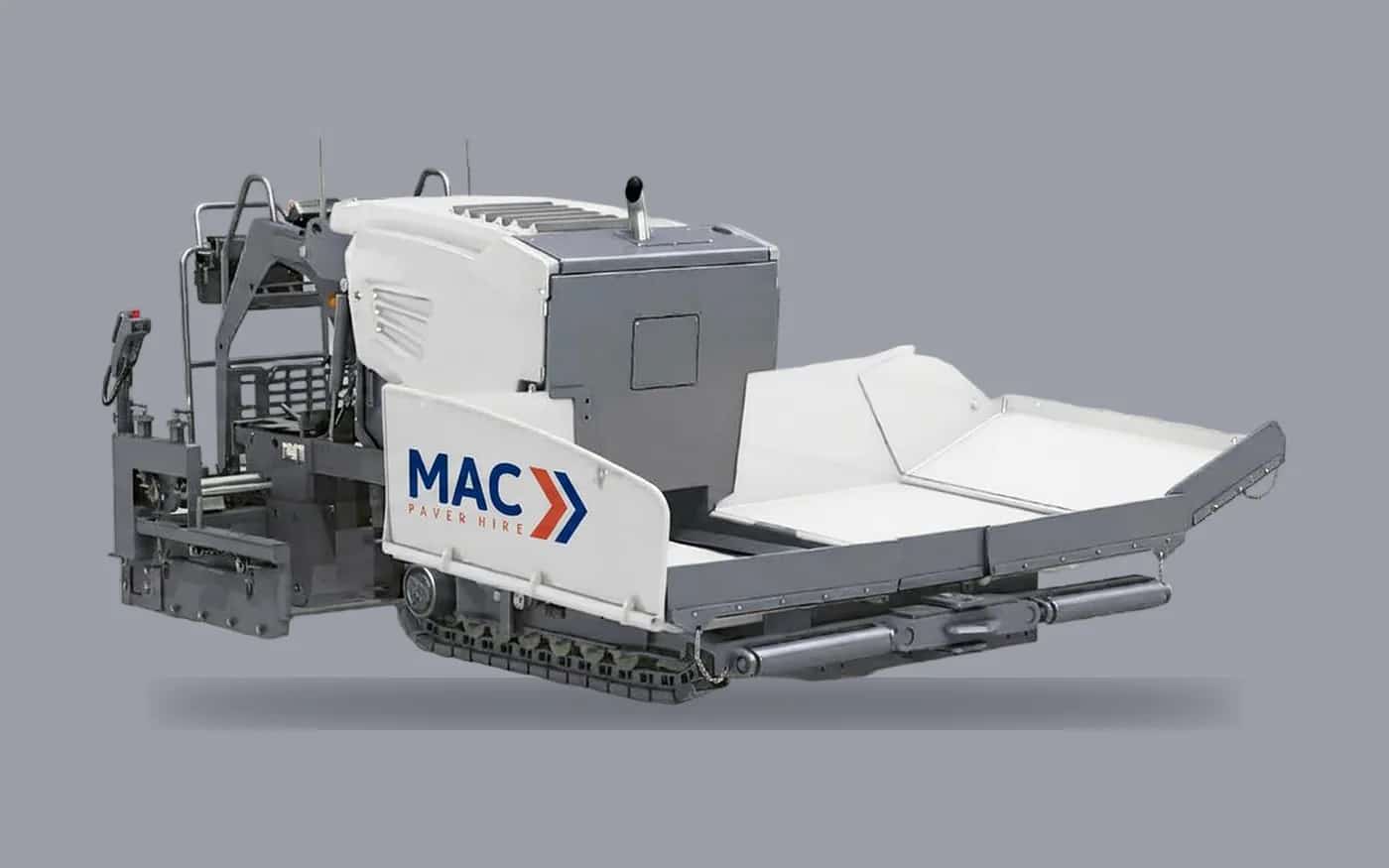

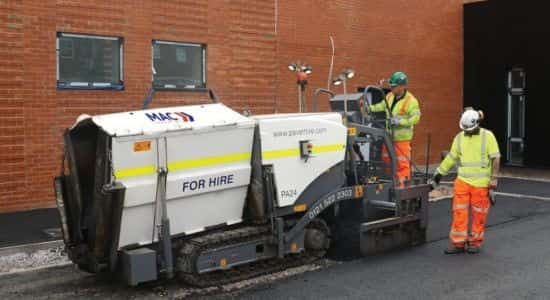

Vogele S800 (Mini)
Technical Highlights
The SUPER 800 is a compact mini paver which, due to its overall design is capable of handling a variety of paving applications.
The SUPER 800 is ideal for paving jobs such as:
- Roads in municipal areas
- Farm tracks, roads on factory grounds
- Indoor & underground car park applications
- Footpaths and cycle paths
- Any work from rehabilitation through to building of small roads
- Track gauge 1.1m
- Clearance width only 1.2m
- Pave widths from 0.5m up to 3.2m with extension boxes
- Laydown rate up to 250 tonnes/h
- Pave speed up to 60m/min.
- Asymmetrical material hopper
Technical Specification
Paving Width
1.m - 2m (Extension boxes to 3.2m on request)
Milling Width
Paving Thickness
200mm Maximum
Milling Depth
Hopper Capacity
5 Tonnes
Operating Weight CE*
Screed
AB200TV
Speeds
Operating: 0 - 30m/min Travel: 0 - 60m/min
Fuel Tank
75 Litres
Water Tank
Engine Type
Deutz TCD2011L030
Engine Output
45 kW
Engine Power
Electrical System
24 V
Weight
6.1 Tonnes
