Crews
Operated hire with MAC people who know this class of machine - or self-drive where competence and the project allow.
» Paver Hire · Wheeled universal-class asphalt paver · Dash 5

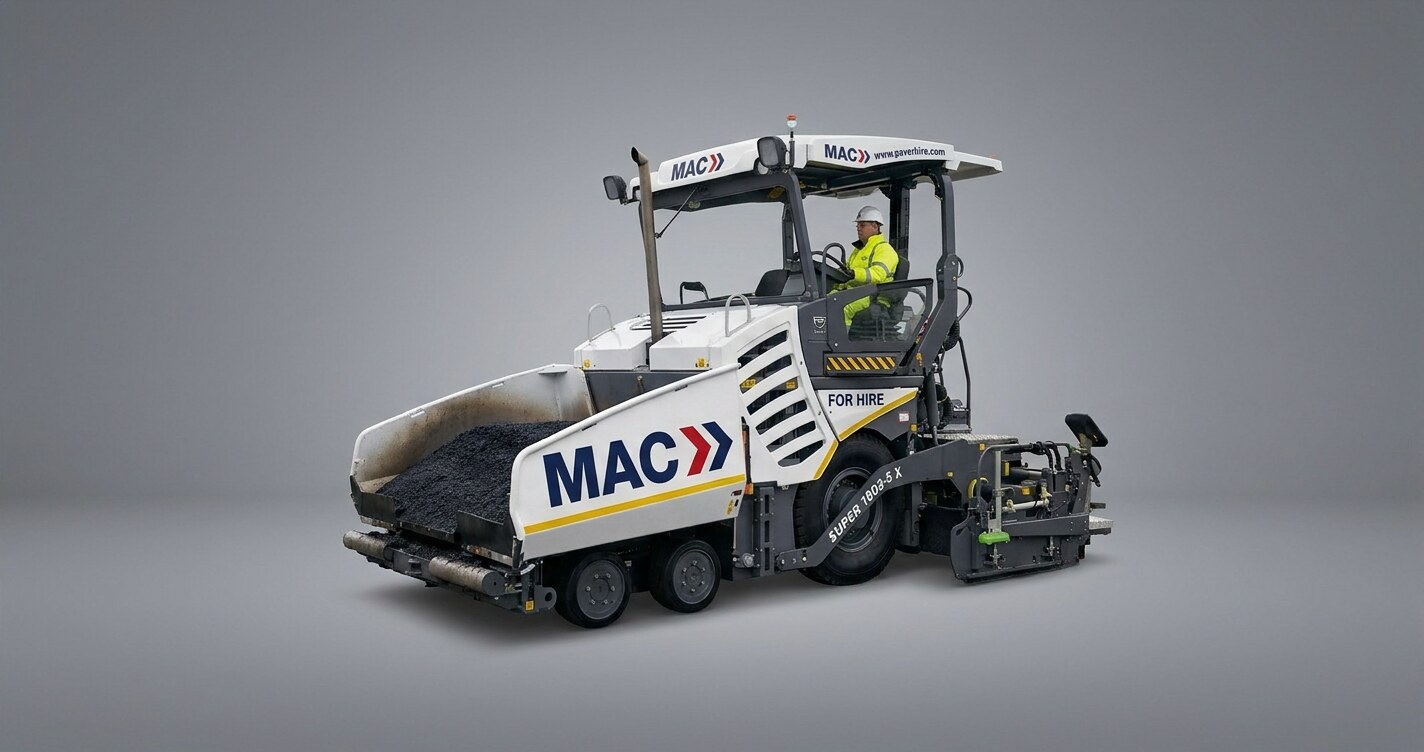

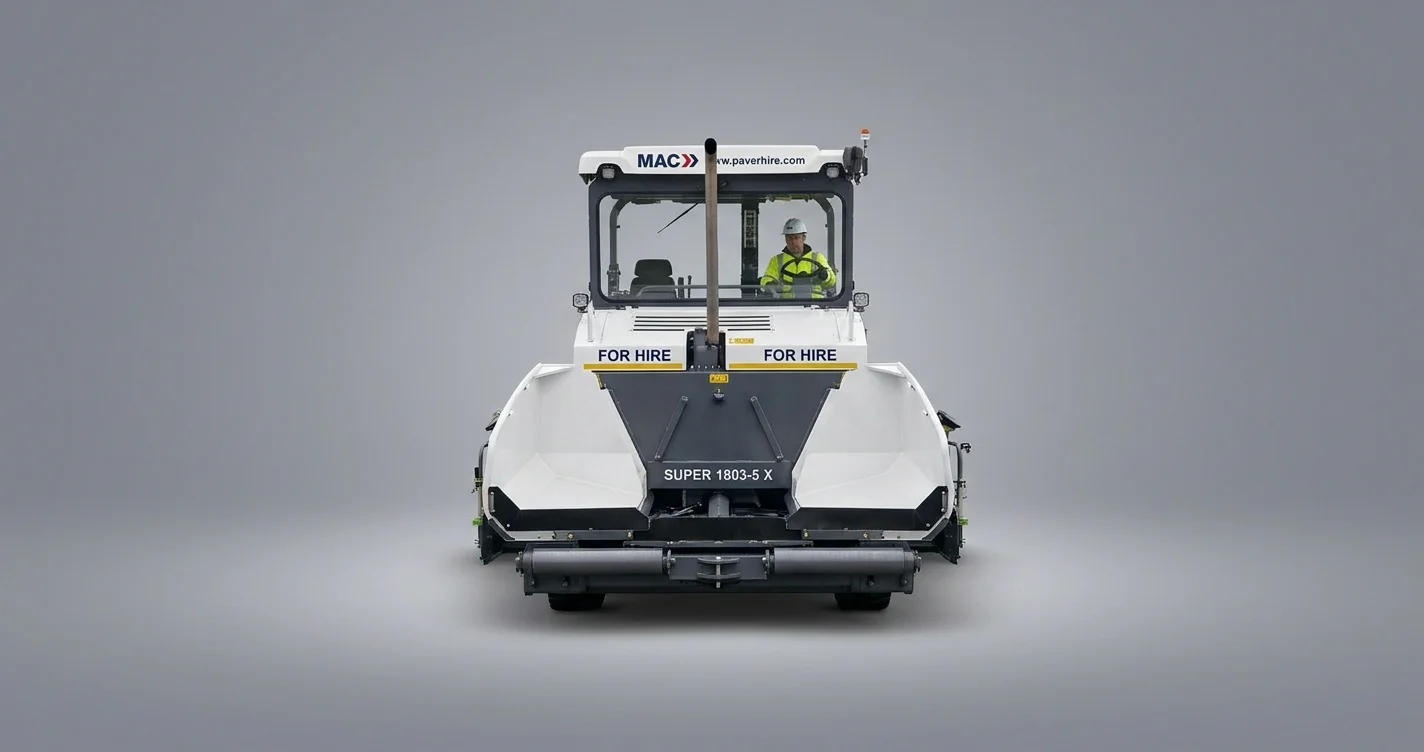

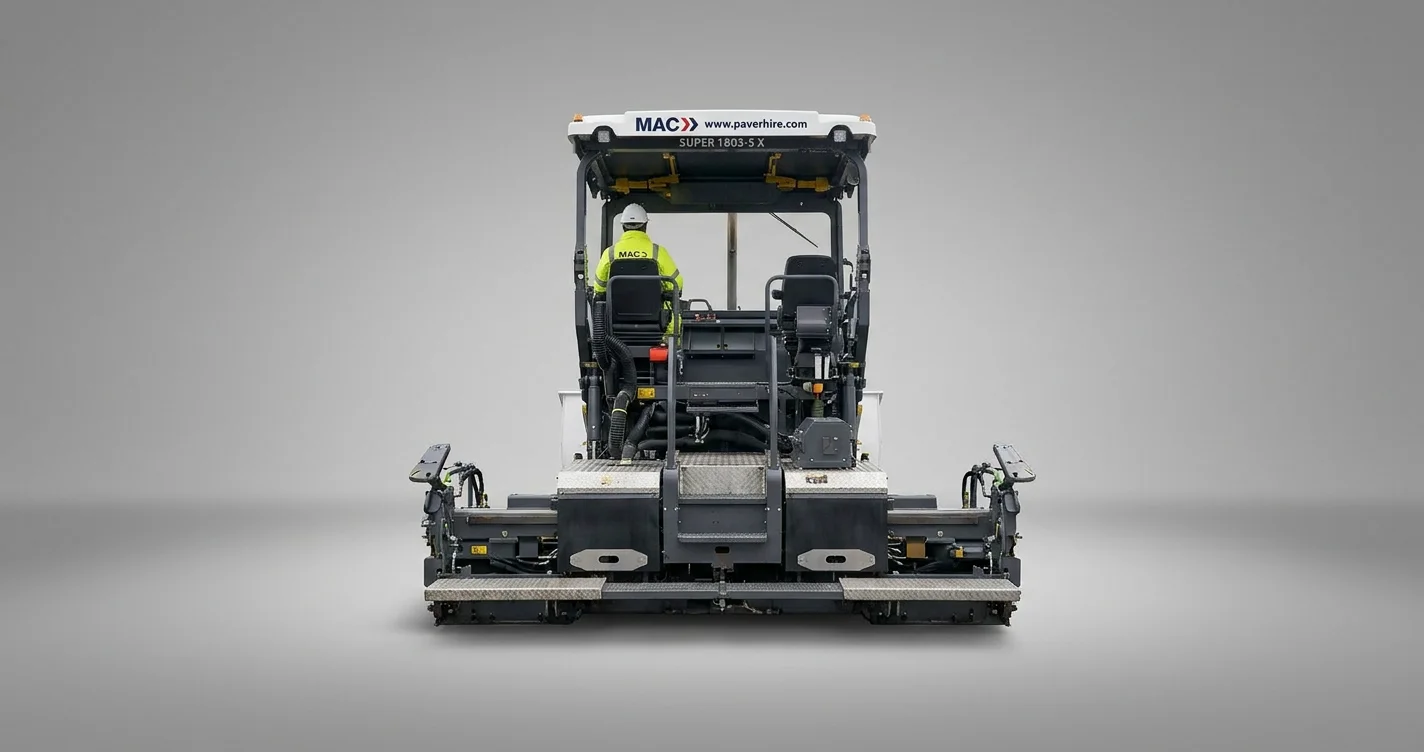

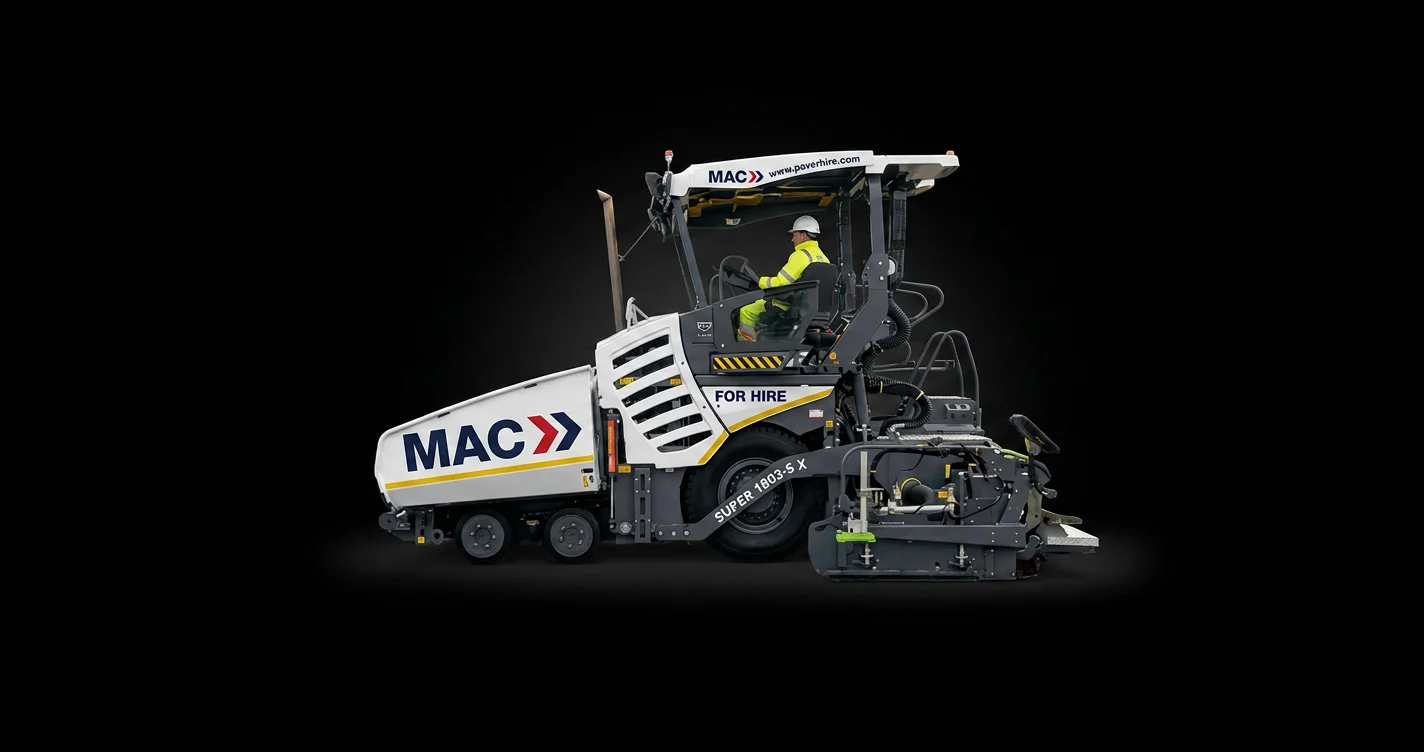

Vögele SUPER 1803-5 X (Wheeled Standard) Hire.
Dash 5 generation of VÖGELE's most powerful wheeled universal-class paver. Combines large pave widths with wheeled manoeuvrability and transport ease. MAC's 2026 investment programme covers three SUPER 1803-5 X units.
AB 500 TV screedWheeledSelf-drive hire, operated hire or complete surfacing package, confirm at booking
» Site & transport
Key dimensions for hire
You know the model - check low-loader fit and access before you book.
01
2.55 m
Pave width · basic
Extending screed base
02
2.55-5.00 m
Pave width
AB 500 TV
03
No bolt-ons
Extensions
Reviewed MAC configurations
04
Confirm
Operating weight
Allocated AB 500 TV machine
05
13 t
Hopper capacity
06
129 kW
Engine output
Cummins B4.5 · Stage V
Ready to place it?
Check availability →0121 522 2303Self-drive hire, operated hire or complete surfacing package, confirm at booking
» Camera roll
On site & in the yard
Real photography · not the product stills
01» With MAC
Built for real sites
Wheeled universal-class asphalt paver (Dash 5) with the MAC-reviewed AB 500 TV configuration extending from 2.55 m to 5.00 m. Hopper 13 t · high laydown capability for highways and high-output schemes.
Workshop
In-house 24/7 workshop support. Breakdowns are our problem to solve, not a third-party hire desk.
Haulage
Own low-loaders on our schedule. We plan mobilisation with you so the machine arrives when the programme needs it.
The package
Ask about complementary plant so the job works as one hire package, not a pile of separate call-offs.
Well suited to
- Highways and principal roads
- Large car parks and yards
- Roundabouts and junctions
- Municipal resurfacing
- Variable-width paving
- High-output asphalt schemes
» Hire path
Self-drive hire, operated hire or complete surfacing package
Choose the support around this paver: self-drive hire with your competent crew, operated hire with a MAC driver and screwman or a complete surfacing package.
» Specs
Full technical sheet
- Paving width (MAC configuration)
- 2.55 m - 5.00 m
- Bolt-on extensions
- Not included in reviewed MAC configurations
- Paving thickness
- Up to 300 mm
- Hopper capacity
- 13 t
- Hopper width
- 3,290 mm
- Screed
- AB 500 TV
- Paving speed
- Up to 18 m/min
- Travel speed
- Up to 19 km/h
- Operating weight
- Confirm against allocated AB 500 TV machine
- Engine
- Cummins B4.5 · 129 kW (Stage V / Tier 4f)
- Fuel tank
- 215 litres
- Laydown (manufacturer max)
- Up to 700 t/h - site-dependent
The 2025 quotes and 2026 verbal-order confirmation specify AB 500 TV at 5.0 m without bolt-on extensions. A certificate of newness evidences machine 1483.0090; the wider three-machine investment is recorded separately, so no generic fleet ID or AB 600 figures are published here.
2004
Established
West Midlands
3
Generations
surfacing heritage
24/7
Workshop support
in-house back-up
Own
Plant and crews
self-delivered
UK
Programme reach
for larger, long term work
