» Paver Hire · Wheeled universal class asphalt paver
Vögele SUPER 1803-3i (Wheeled Standard) Hire.

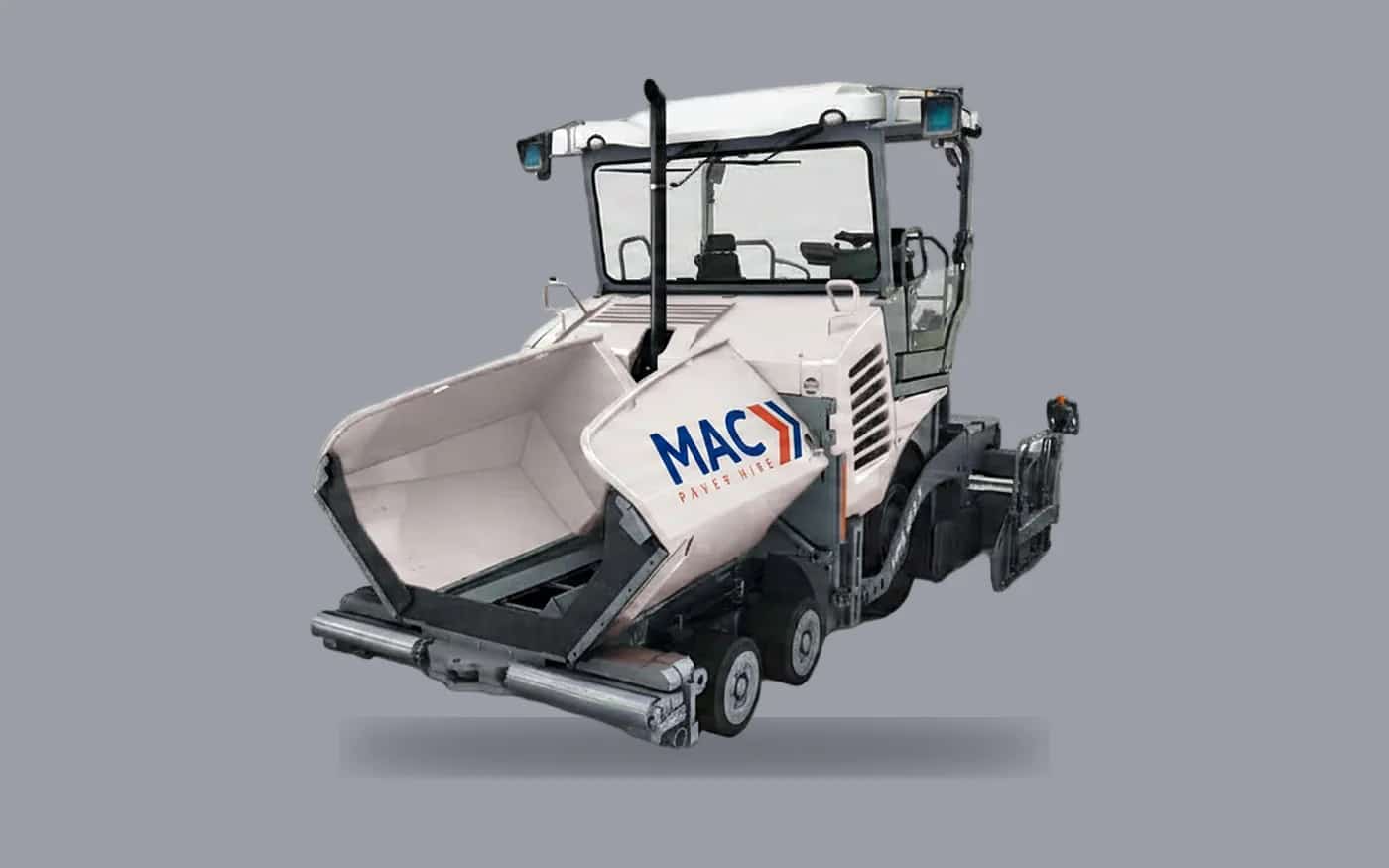

Universal-class VÖGELE wheeled paver with sturdy material handling, large pave widths and easy transfer under its own power. Supplied with AB 500 TV screed for highways, car parks and high-output schemes.
AB 500 TV screedWheeledSelf-drive hire, operated hire or complete surfacing package, confirm at booking
» Site & transport
Key dimensions for hire
You know the model - check low-loader fit and access before you book.
01
2.55-5.00 m
Pave width · basic
AB 500 TV, no extension boxes
02
No bolt-ons
Extensions
Reviewed MAC configurations
03
6.0 m
Transport length
With AB 500 TV · low-loader
04
3.86 m
Overall height
3,860 mm · manufacturer drawing
05
2.55 m / 3.27 m
Transport / hopper width
Transport 2.55 m · hopper 3,265 mm
06
17.3 t
Operating weight
Up to 5 m pave width
Ready to place it?
Check availability →0121 522 2303Self-drive hire, operated hire or complete surfacing package, confirm at booking
» Camera roll
On site & in the yard
Real photography · not the product stills

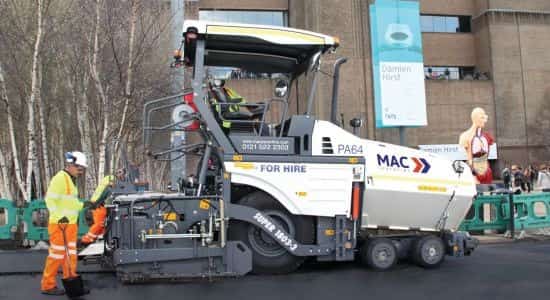

01» With MAC
Built for real sites
Wheeled universal-class asphalt paver with hydraulically extending AB 500 TV screed. The reviewed MAC configurations cover 2.55-5.00 m without bolt-on extensions.
Workshop
In-house 24/7 workshop support. Breakdowns are our problem to solve, not a third-party hire desk.
Haulage
Own low-loaders on our schedule. We plan mobilisation with you so the machine arrives when the programme needs it.
The package
Ask about complementary plant so the job works as one hire package, not a pile of separate call-offs.
Well suited to
- Highways and principal roads
- Large car parks and yards
- Roundabouts and junctions
- Municipal resurfacing
- Variable-width paving
- High-output asphalt schemes
» Hire path
Self-drive hire, operated hire or complete surfacing package
Choose the support around this paver: self-drive hire with your competent crew, operated hire with a MAC driver and screwman or a complete surfacing package.
» Specs
Full technical sheet
- Paving width (MAC basic)
- 2.55 m - 5.00 m
- Bolt-on extensions
- Not included in reviewed MAC configurations
- Paving thickness
- Up to 300 mm
- Hopper capacity
- 13 t
- Hopper width
- 3,265 mm
- Screed
- AB 500 TV (vibrating)
- Paving speed
- Up to 18 m/min
- Travel speed
- Up to 20 km/h
- Transport length (AB 500 TV)
- 6.0 m
- Overall height
- 3.86 m (3,860 mm · manufacturer drawing)
- Transport width
- 2.55 m
- Operating weight (to 5 m)
- 17.3 t
- Engine
- Cummins QSB6.7-C173 · 129 kW (quoted configuration)
- Fuel tank
- 220 litres
- Laydown (manufacturer max)
- Up to 700 t/h - site-dependent
The 2022-2025 quote history, including the 2025-03-31 verbal-order pack for two machines, consistently specifies AB 500-3 TV at 5.0 m without bolt-on extensions. PA83 appears in later correspondence as a proposed part-exchange unit, so it is not published as a current fleet ID.
